public address systems
Emergency announcement systems according to Standard 1220 (integrated system) of the Standards Institute of Israel are mandatory in many buildings and institutions. Our company provides a perfect solution tailored to the customer’s requirements and special operational needs. The standard / fire services guidelines require sites with a large public and risk level 2 to install a standard system that meets the requirements for safety and complies with the specification and standard 1220/3.
Sometimes it is possible that the installed detection system is up to standard, but an emergency public address system needs to be added.
An independent “Ghouta” model public address amplifier can be installed that connects to any existing detection system.
On sites where a standard 1220 Part 3 emergency public address system has been installed, annual inspections and maintenance must be performed.
public address system 50W Built-in emergency microphone 5 zones.
✔ Emergency announcement amplifier – 50W, 5 zones
Separate control in each zone
✔ Built-in emergency microphone + option to connect up to 6 PTT controlled microphones
✔ Built-in MP3 player
✔ Play music from SD/USB drive
✔ Bass and treble control
✔ Two dry contacts
✔ Dedicated contact for activating a fire alarm circuit
✔ Speaker output – direct connection to speakers
✔ Option for pre-recorded message – customized for the customer
public address system 20W Built-in emergency microphone 1 zone.
Emergency announcement amplifier – 20W, 1 zones
Separate control in each zone Built-in emergency microphone Built-in MP3 player Play music from SD/USB drive Bass and treble control Two dry contacts Dedicated contact for activating a fire alarm circuit Speaker output – direct connection to speakers Option for pre-recorded message – customized for the customer
220W PA system
Built-in emergency microphone 4 zones
Emergency announcement amplifier – 220W, 4 zones
Separate control in each zone Built-in emergency microphone + option to connect up to 6 PTT controlled microphones Built-in MP3 player Play music from SD/USB drive Bass and treble control Two dry contacts Dedicated contact for activating a fire alarm circuit Speaker output – direct connection to speakers Option for pre-recorded message – customized for the customer
public address system 100W Built-in emergency microphone 5 zones.
✔ Emergency announcement amplifier – 100W, 5 zones
Separate control in each zone
✔ Built-in emergency microphone + option to connect up to 6 PTT controlled microphones
✔ Built-in MP3 player
✔ Play music from SD/USB drive
✔ Bass and treble control
✔ Two dry contacts
✔ Dedicated contact for activating a fire alarm circuit
✔ Speaker output – direct connection to speakers
✔ Option for pre-recorded message – customized for the customer
Emergency microphone
in a box
✔ Emergency microphone in a controlled box
✔ Dedicated microphone for emergency situations, installed in a protected box
✔ Controlled operation with a PTT button (push-to-talk)
✔ Indicator light for proper operation and transmission
✔ Direct connection option to a central PA amplifier or emergency announcement system
✔ Rigid structure, suitable for installation in the walls of corridors, lobbies or control rooms
✔ Allows immediate control over the transmission of emergency messages to all areas
350W PA system
Built-in emergency microphone 2 zones
Emergency announcement amplifier – 350W, 2 zones
Separate control in each zone Built-in emergency microphone + option to connect up to 6 PTT controlled microphones Built-in MP3 player Play music from SD/USB drive Bass and treble control Two dry contacts Dedicated contact for activating a fire alarm circuit Speaker output – direct connection to speakers Option for pre-recorded message – customized for the customer
Horn Speaker
YSP-825E Horn speaker 6.5 inch horn speaker Rated input: 25W(can select from 10W/15W/20W/25W) Rated impedance:100V,10W(1KΩ),15W(667Ω) 20W (500Ω),25W(400Ω) Maximum acoustic pressure: 115dB/1m, L class Rated frequency range:320Hz~5.5KHz Material: Aluminum alloy Includes matching transformer, integrated Dimensions in mm: 210Φ (diameter) × 280 (depth)
Speaker on the wall
YSP-0403D Surface-mounted speaker 4 inch moving coil cone speaker Rated input: 0.5W / 1.5W / 3W Rated impedance:100V, 0.5W(20KΩ)/1.5W(6.6KΩ)/3W(3.3KΩ) Output acoustic pressure: Above 92dB (1m) L class Rated frequency range:200Hz~12KHz Material/thickness: ABS plastic material/thickness 2mm Exterior dimensions in mm: 182Φ (diameter) × 66.5 (depth)

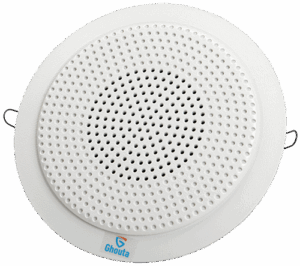

Ceiling speaker
YSP-0506B1 Ceiling-mounted speaker 4 inch moving coil cone speaker Rated input: 0.5W / 1.5W / 3W Rated impedance:100V, 0.5W(20KΩ)/1.5W(6.6KΩ)/3W(3.3KΩ) Output acoustic pressure: Above 92dB (1m) L class Rated frequency range:200Hz~12KHz Material/thickness: ABS plastic material/thickness 3mm Exterior dimensions in mm: 200Φ (diameter) × 60 (depth) Installation hole size: 175Φ (diameter)
Public address system goals:
Sending messages to employees
School bell clock
Background music
Fire alerts
The systems that can be found with us meet all the legal standards for fire in a factory. They include public address and smoke control systems, so that in the event of a fire, an alarm will be activated in the factory/office where they are installed. They also include a loudspeaker through which messages can be played during routine and emergency situations.
The sizes available in stock are:
350W
220W
100W
50W
20W
